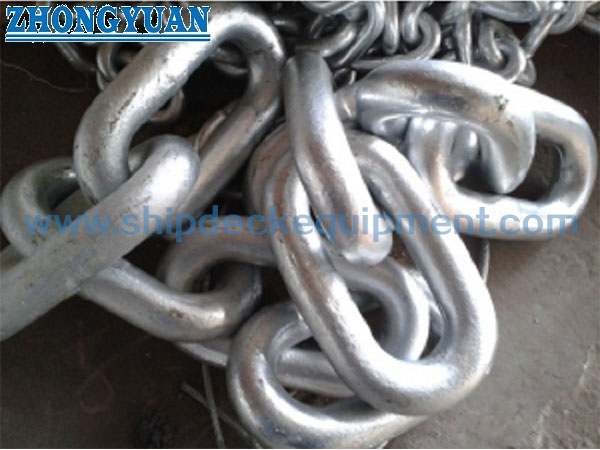

MIL-C-22521 Open Link Chain Coast Guard Buoy Chain Anchor Chain

Brand Name : Zhongyuan

Model Number : Standard and Customized

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Place of Origin : China

MOQ : 1

Price : As per quotation

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Delivery Time : As per offer

Packaging Details : Pallet or Customized

Standard : MIL-C-22521C

Grade : Grade 1, 2, 3;

Chain Diameter : 13mm to 48mm

Length per shot : Customized

Construction : Flash butt welded,

Type : Open Link, Studless Link;

Test : Proof load test, Break load test, Material property test,

Surface treatment : Hot dip galvanize, Electric galvanized, Anti-corrosive painted;

Certificates : ABS, any other third-party inspection certificate and Mill Certificate.

Material Grade : SUS 304, SUS 316, CM490, 20Mn2,

Contact Now

MIL-C-22521 Open Link Chain Coast Guard Buoy Chain Anchor Chain

Description

MIL-C-22521C U.S. open link coast guard buoy chain is used for positioning for buoy tank. It is manufactured in accordance with U.S. Coast Guard Specification Mil-C-22521C, the welded buoy chain is an open link, studless chain, manufactured to Grade 1.2,3. Both the chain and the end links are manufactured from C-Mn steel round bar, AISI 1030 per Mil-S-16974, with a tensile strength ranging from 71,000 to 92,500 pis.

We supply all kinds of buoy chain, They can be stud link and open link. They are butt flash welded. The surface is either painted or hot dip galvanized. It has good anti corrosive property and high strength.

Main Technical Specifications

  1. Standard:MIL-C-22521C
  2. Material: SUS 304, SUS 316, CM490, 20Mn2,
  3. Chain Diameter: 13mm to 48mm
  4. Length per shot: 25-27.5m, Customized
  5. Construction: Flash butt welded
  6. Type: Open Link, studless link
  7. Grade: Grade 1, 2, 3;
  8. Test: Material property test, Heat treatment, Proof load test and Break load test.
  9. Surface treatment: Hot dip galvanize, anti-corrosive painted;
  10. Certificates: ABS, and any other third party inspection certificate and Mill Certificate.

Main Technical Parameters:

Common Links End Links Loads
Weight Per
15-Fathom Shot
(Approx.)
Chain
Diameter
A
(Inches)		 Chain
Diameter
A
(mm)		 Link
Length
B		 Link
Width
C		 Length
Over Six
Links D		 Chain
Diameter
E		 Link
Length
F		 Link
Width
G		 Proof
Load		 Break
Load
1/2 13 3 1-7/8 13 3/4 4-1/4 2-5/8 7500 15000 210
5/8 16 3-3/4 2-1/4 16-1/4 3/4 4-1/2 2-5/8 11500 23000 323
3/4 19 4-1/2 2-5/8 19-1/2 7/8 5-1/4 3-1/8 16000 32000 442
7/8 22 5-1/4 3-1/8 22-3/4 1-1/8 6-3/4 3-7/8 22000 40000 608
1 25 6 3-1/2 28 1-1/4 7-1/2 4-3/8 29000 58000 760
1-1/8 28 6-3/4 3-7/8 29-1/4 1-1/4 7-1/2 4-3/8 38500 77000 990
1-1/4 32 7-1/2 4-3/8 32-1/2 1-1/2 9 5-1/4 45500 91000 1245
1-1/2 38 9 5-1/4 39 1-7/8 11-1/4 6-1/2 65500 131000 1762
1-5/8 42 9-3/4 5-11/16 42-1/4 1-7/8 11-1/4 6-1/2 76500 153000 2040
1-3/4 44 10-1/2 6-1/16 45-1/2 2-1/8 12 7-3/16 86500 173000 2370
1-7/8 48 11-1/4 6-1/2 48-3/4 2-1/8 12 7-3/16 100000 200000 2640
MIL-C-22521 Open Link Chain Coast Guard Buoy Chain Anchor Chain

Drawing of MIL-C-22521 Open Link Chain Coast Guard Buoy Chain Anchor Chain

MIL-C-22521 Open Link Chain Coast Guard Buoy Chain Anchor Chain

MIL-C-22521 Open Link Chain Coast Guard Buoy Chain Anchor Chain

MIL-C-22521 Open Link Chain Coast Guard Buoy Chain Anchor Chain
